GMDSS Tester MRTS - 7M
GMDSS MULTI TESTER MRTS-7M Modern Technology to ensure safety at sea
GMDSS Test Set for Radio Inspections
GMDSS Multi Tester MRTS-7M is the first handheld multi tester that enables a comprehensive radio survey of all maritime radio equipment in accordance with IMO requirements, such as:
- VHF and MF/HF radios with DSC
- AIS stations
- EPIRBs, including AIS EPIRBs and RLS-enabled beacons
- AIS-SARTs
- 9 GHz SARTs
- NAVTEX
- NBDP (Telex)

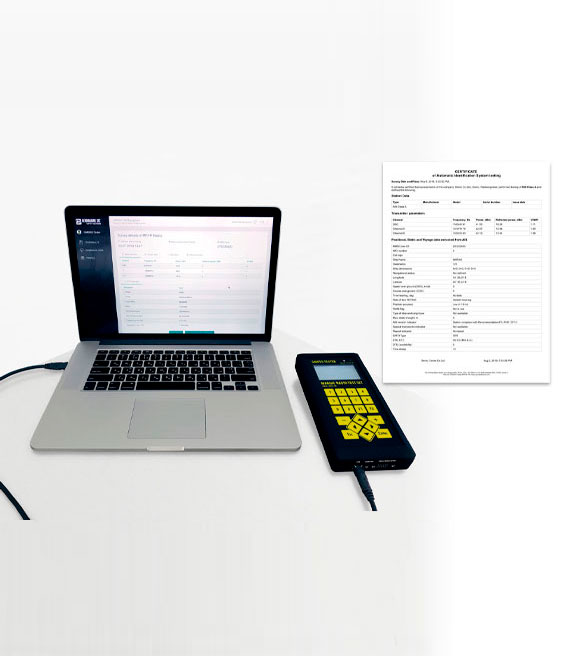

Its cutting-edge software is designed to manage test results on PCs running any operating system. It supports automatic generation of test reports for the entire range of tested equipment, with all reports in IMO-required format.
Product overview
GMDSS Multi Tester MRTS-7M is a specialized piece of equipment intended for radio inspectors performing mandatory periodical surveys of shipborne communication equipment.
The tester allows ensuring that the GMDSS equipment meets the appropriate performance requirements.
The Marine Radio Test Set MRTS-7M is capable of transmitting and receiving signals via:
- Broadcast antenna

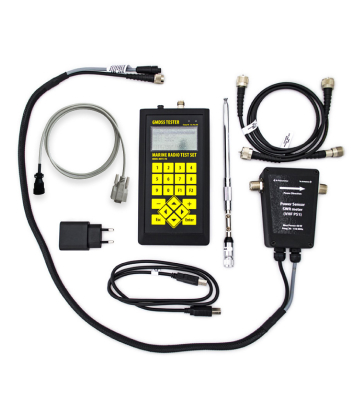

- Direct connection using a power sensor meter, attenuator, and cables (conductive measurements)
All test procedures are provided in accordance with international standards, such as:
- IMO Resolutions A.948(23), A.997(25), A.1020(26) (for marine radio stations);
- IMO Circular MSC.1/Circ.1252 (for AIS stations);
- IMO Circulars MSC.1/Circ.1039/Rev.1, 1040/Rev.2 (for C/S beacons);
- IMO Resolution A.802(19), SOLAS-74/88 (for SARTs)

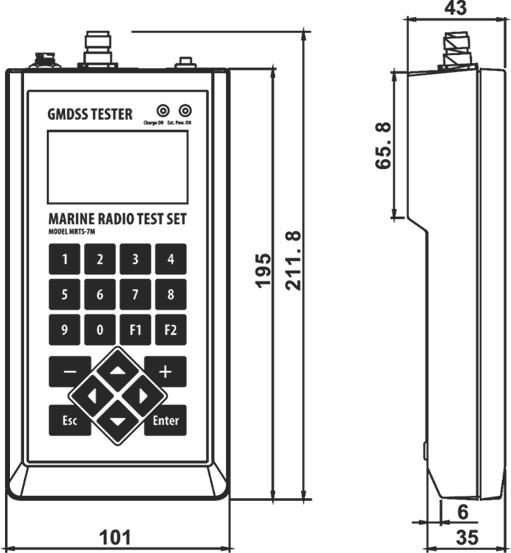

Dimensions

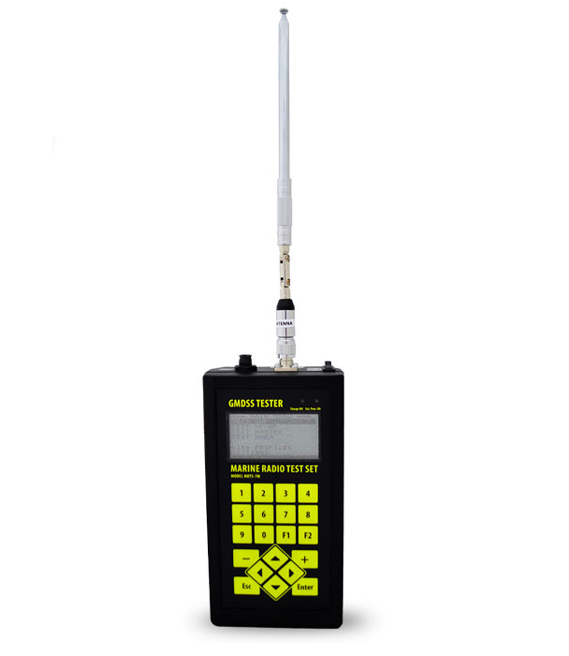

Marine Radio Test Set MRTS-7M is designed for mandatory periodical and annual surveys of the full range of GMDSS equipment, including AIS stations, EPIRBs, VHF and MF/HF radios with DSC, and NAVTEX receivers. This lightweight, handheld device features a large LCD screen and 20 keys for convenient operation.
Dimensions of main unit: 100 x 200 x 45 mm
Weight of main unit: 0.44 kg

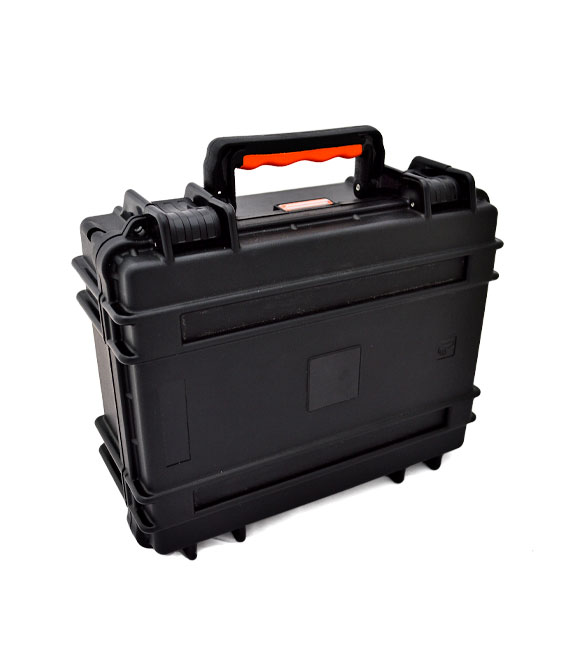

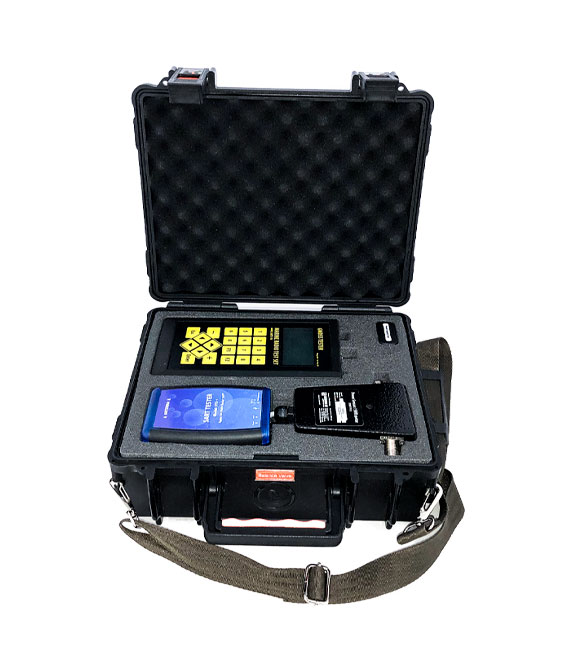

Dimensions of plastic case: 303 x 268 x 116 mm
Total weight in case: 2.5 kg
